Oilfield flow control demands zero-leakage isolation. You need absolute reliability from every component on the pad. Choosing the wrong valve actuation method directly compromises well site safety. It impacts environmental compliance and long-term operating expenses. Manual and hydraulic valves share identical internal mechanisms. Both use slab or expanding gates to block fluid flow. However, they manage operational risk in drastically different ways.
You face high stakes when building production systems. We know you need absolute clarity before procurement. This guide provides a focused technical and commercial framework. We will help you specify the correct oilfield gate valve. You must base this choice on pressure ratings, safety protocols, and lifecycle operating costs. You will learn exactly how to compare these vital components. We intend to give you the data required to build a safer, more efficient wellpad.
Manual gate valves offer lower upfront capital expenditure (CAPEX) and simplistic maintenance, making them ideal for standard, highly accessible, non-emergency applications.
Hydraulic gate valves are mandatory for Emergency Shutdown (ESD) systems and remote wellheads where rapid, fail-safe actuation is non-negotiable.
The decision relies on a strict assessment of API 6A compliance requirements, labor availability, and the specific risk matrix of the high-pressure environment.
We must understand the shared foundation first. The American Petroleum Institute sets strict specifications. These rules govern pressure control equipment globally. Any wellhead gate valve requires rigorous testing to meet these standards. You must specify the correct material class for your environment. Classes range from AA for general service to HH for severe sour gas. Temperature classifications also play a crucial role. Product specification levels dictate manufacturing quality control. They range from PSL 1 to PSL 4. Both manual and hydraulic options share these identical foundation requirements.
The divergence happens above the bonnet. You open a manual valve using human torque. Operators physically turn a handwheel to raise or lower the stem. Conversely, hydraulic valves use external fluid pressure. A control panel directs pressurized fluid into a dedicated cylinder. This fluid moves a piston to drive the stem. This fundamental mechanism dictates optimal applications across upstream and midstream sectors. It changes how you approach site design.
We evaluate flow control success through clear operational metrics. The valve must isolate fluid instantly under maximum pressure. It must comply with all site safety regulations. Good performance means zero unplanned shut-ins during production. It also requires straightforward maintenance procedures. Operators need equipment they can trust entirely. Any API 6A gate valve must deliver this baseline reliability. Actuation methods simply determine how quickly and safely you can achieve it.
Engineering reality dictates how these components function. A manual unit operates via a purely mechanical stem and handwheel. It requires direct human intervention. Field personnel must apply physical torque to rotate the stem. This rotation translates into linear motion. The gate slides upward to open the flow path. It slides downward to close it. The design is elegantly simple. It contains very few moving parts.
We see several primary advantages here. They offer the lowest initial capital expenditure. Procurement teams favor them for budget-conscious projects. They carry zero reliance on external power. You do not need expensive hydraulic control lines. You also avoid installing pneumatic compressors. The maintenance profile remains highly simplified. Mechanics only need to monitor stem packing and bearing lubrication. Fewer failure points mean easier field service.
However, implementation risks and limitations exist. Actuation time remains incredibly slow. A worker might need several minutes to close a large bore valve. They are entirely unsuitable for emergency isolation scenarios. Furthermore, they present severe safety risks to personnel. Workers must stand directly in hazardous zones to operate them. A sudden pressure spike during manual operation can prove catastrophic.
We recommend them for specific ideal scenarios. They excel as secondary isolation units. You see them heavily utilized in manifold routing applications. They serve perfectly as block valves on highly accessible pipelines. Engineers frequently specify them for bypass lines. Immediate actuation is not critical in these locations. They remain the undisputed workhorse for routine, non-emergency fluid routing.

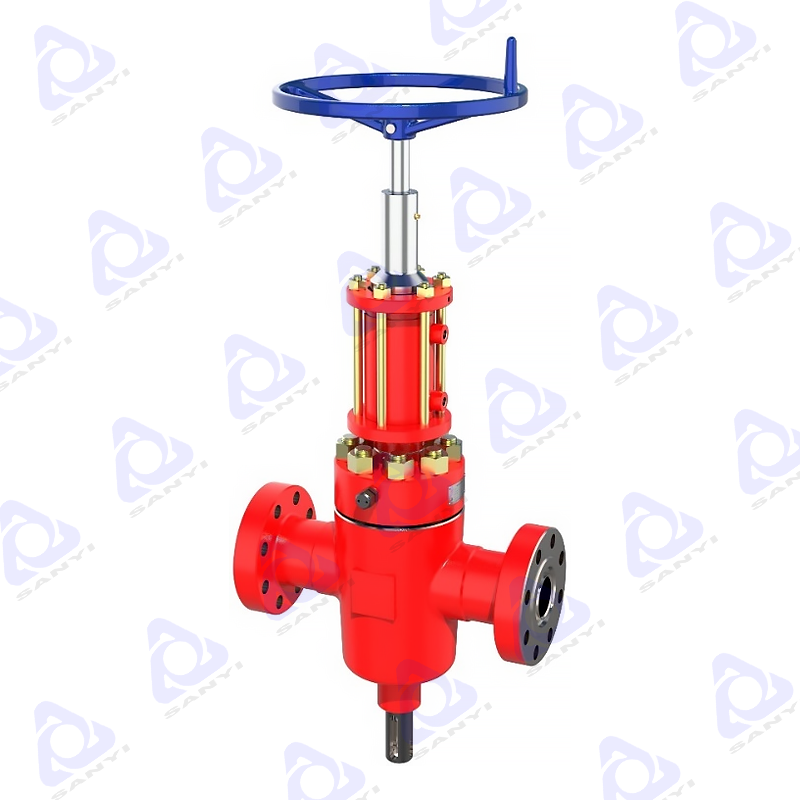

The engineering reality shifts dramatically here. This design utilizes a robust hydraulic cylinder to drive the stem. Engineers often configure them as fail-close or fail-open units. They achieve this using heavy-duty spring-return mechanisms. Pressurized fluid pushes the piston to open the gate. It simultaneously compresses a massive mechanical spring. When hydraulic pressure drops, the spring forces the gate closed instantly.
The primary advantages center on speed and safety. They provide instantaneous, remote operation from a safe distance. They are absolutely essential for automated Emergency Shutdown systems. You cannot build a modern safety system without them. Most importantly, they remove personnel from hazardous areas. Workers stay safely in the control room during a blowout or pressure spike. You eliminate human exposure to catastrophic wellbore events.
We must acknowledge the implementation constraints. They require significantly higher initial capital expenditure. The installation process is highly complex. You must integrate hydraulic power units and control panels. You also have to run high-pressure tubing across the wellpad. Maintenance demands specialized technicians. They must manage internal seal integrity carefully. They also need to maintain strict hydraulic fluid cleanliness. Contaminated fluid destroys actuator seals rapidly.
Ideal scenarios demand automated safety protocols. You will find them dominating frac trees during stimulation operations. They are standard equipment on high-volume production wellheads. You also need them on critical choke manifolds. Essentially, any high pressure gate valve application requires them. If safety regulations mandate instant isolation, you must specify a hydraulic unit.
You face a complex choice when balancing budget and safety. Analyzing hydraulic gate valve vs manual gate valve options requires a structured approach. We evaluate four distinct categories to guide engineering specifications.
Compare the initial acquisition cost against long-term maintenance expenses. Manual units cost significantly less upfront. You buy the valve and install it directly. Hydraulic units require purchasing the actuator, control panel, and power unit. However, you must factor in labor costs. Manual valves require constant human intervention. Operators spend hours driving between remote pads to open or close valves. Hydraulic systems allow remote operation. This drastically reduces expensive manual labor and vehicle expenses over the asset lifecycle.
Evaluate your site-specific safety regulations carefully. Organizations like API and local governments enforce strict rules. When is hydraulic actuation legally mandated? Any system tied to an Emergency Shutdown protocol requires fail-safe automation. You cannot use a handwheel for API RP 14C compliance in critical zones. The environmental risk also dictates this choice. Flowing hazardous H2S gas near populations demands instant shut-in capabilities. Safety compliance always overrides budgetary constraints.
Time-to-close metrics differ wildly between these options. A human turning a handwheel takes minutes. A pressurized cylinder takes seconds. We measure hydraulic closure times in fractions of a minute. This speed protects downstream equipment from over-pressurization. It also prevents massive fluid spills during line ruptures. Rapid actuation controls volatile flow dynamics effectively. Slow manual actuation simply cannot arrest a sudden blowout.
Assessing physical space remains critical. Manual valves feature a standalone nature. They require minimal vertical clearance. They need zero peripheral infrastructure. Hydraulic control systems demand a larger footprint. You must allocate space for hydraulic power units on the skid. The actuator itself adds significant height and weight to the tree. Offshore platforms and tight drilling pads must account for this bulk early in the design phase.
Table 1: Decision Matrix for Actuation Methods
Evaluation Criteria | Manual Actuation | Hydraulic Actuation |
|---|---|---|
Initial Equipment Cost | Low (Standalone unit) | High (Requires HPU and controls) |
Actuation Speed | Slow (3 to 5 minutes) | Instantaneous (2 to 10 seconds) |
Personnel Safety Risk | High (Requires presence at wellhead) | Low (Operated from safe distance) |
Infrastructure Needed | None (Human physical torque) | High (Hydraulic fluid lines, power) |
Primary Application | Routine routing, bypass, block valves | Frac trees, ESD systems, choke manifolds |
We must confront harsh sourcing realities. The cheapest unit often creates the most expensive downtime. Buying inferior pressure control equipment leads to catastrophic leaks. You must vet your manufacturing partners thoroughly. A rigorous evaluation framework protects your operational investments.
You must evaluate every manual gate valve manufacturer carefully. Look for verifiable material traceability first. You need mill test reports for all pressure-containing bodies. We also recommend checking their hydro-testing capabilities. They must pressure test every unit beyond working limits. Availability of OEM replacement parts is equally critical. You do not want to wait months for a simple replacement stem. These steps guarantee operational safety and longevity.
We advise auditing your hydraulic gate valve supplier rigorously. Assess their expertise in actuator-to-valve mating. Poor alignment destroys stems rapidly. You should verify hydraulic seal material compatibility. Fluid types dictate whether you need NBR, HNBR, or Viton seals. Demand complete Factory Acceptance Testing transparency. They must prove the spring-return mechanism functions flawlessly under load. Ask to see the FAT documentation before taking delivery.
Structuring your Request for Quote (RFQ) requires specific details. Do not submit vague requirements. Follow these exact steps:
Specify Working Pressure: Define the maximum expected wellbore pressure accurately. State if you need 5,000 PSI or 15,000 PSI ratings.
Define Fluid Characteristics: Identify the presence of H2S, CO2, or abrasive sand. This dictates material class selection.
Detail the Operating Environment: Mention extreme ambient temperatures. Actuator seals behave differently in arctic versus desert climates.
Request Actuation Times: Require the vendor to guarantee specific opening and closing speeds for fail-safe units.
Demand API Certification: Require proof of API 6A monograms for all quoted equipment.
We reach a clear final verdict. There is no universal better valve. Each type serves a distinct, critical purpose. Manual valves serve as the dependable backbone of routine fluid routing. They keep infrastructure costs low and operations simple. Conversely, hydraulic valves serve as the necessary insurance policy for critical pressure control. They protect human life and the environment during emergencies.
We offer actionable advice for your next project. Audit your site safety architecture thoroughly. Evaluate your human resource availability before finalizing specifications. If labor is scarce and the pad is remote, automate it. If the valve sits safely inside a processing facility for occasional use, save capital with a handwheel. Always consult with a qualified API 6A engineering team. They will validate your flow loop design and ensure complete regulatory compliance.
A: Yes, you can retrofit a manual valve. It requires specific stem adaptations and bonnet changes. You must also conduct re-testing to API standards. Upgrading involves replacing several critical pressure-containing components. Often, buying a purpose-built hydraulic unit proves much more cost-effective and carries less certification risk.
A: Gate and seat scoring from debris represents the most common failure. Stem seal degradation also occurs frequently. You must emphasize proper grease injection routines. Routine maintenance flushes out debris and protects sealing surfaces. Ignoring these crucial steps leads directly to internal leaks and premature failure.
A: These valves utilize a built-in spring-return mechanism. Loss of hydraulic pressure automatically releases a heavy compressed spring. The spring forces the gate into its default closed or open position. This process happens entirely without human intervention. It guarantees instant flow isolation during sudden power losses or rig emergencies.
A: Yes, the valve body and flow bore must meet identical PR1 or PR2 testing standards. Both types undergo rigorous hydrostatic shell and seat tests. However, hydraulic units require additional actuator performance testing. Engineers must verify the hydraulic cylinder handles maximum operating pressures without external seal leakage.
