| Quantity: | |
|---|---|

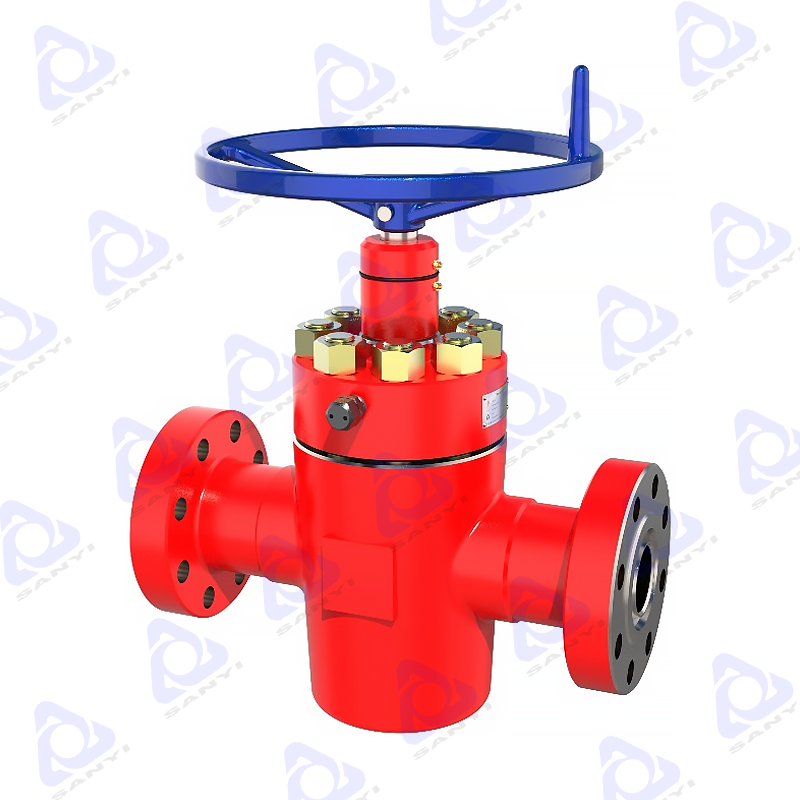

When engineering complex fluid control systems, the foundational data dictates the reliability of the entire operation. The manual gate valve is engineered to withstand extreme mechanical stress and thermal fluctuations, providing a dependable isolation barrier in critical infrastructure. We understand that procurement specialists and project engineers require exact specifications to ensure seamless integration and long-term structural safety. Below are the definitive operational parameters, confirming our equipment's capability to handle intense working pressures up to 15,000psi while maintaining absolute structural integrity across diverse temperature ratings and demanding material classes.
Applicable Standards | API Spec 16C, API Spec 6A |
|---|---|
Temperature Ratings | K, L, N, P, S, T, U, V |
Material Class | AA, BB, CC, DD, EE, FF, HH |
Product Specification Level | PSL-1, PSL-2, PSL-3, PSL-3G |
Performance Requirement | PR-1, PR-2 |
Working Pressure | 3000psi, 5000psi, 10,000psi and 15,000psi |
Nominal Diameter | 2-1/16”, 3-1/8”, 3-1/16”, 4-1/16”, 5-1/8”, 7-1/16” |
Industrial compliance is the bedrock of operational safety and environmental protection. Every manual gate valve we manufacture is heavily scrutinized against the most rigorous global protocols to ensure it performs flawlessly under extreme duress. By adhering to the 21st edition of API Spec 6A and the 5th edition of API Standard 53, we guarantee that our well control equipment systems deliver uncompromising performance in the field. Furthermore, strict alignment with NACE MR0175-2021 ensures that our materials are fully optimized for deployment in highly corrosive hydrogen sulfide (H₂S) environments, effectively mitigating the risk of sulfide stress cracking and extending the lifecycle of your pipeline assets.
API Spec 6A 21st edition | Specification for Wellhead and Tree Equipment |
|---|---|
API Spec 20E 3rd edition | Alloy and Carbon Steel Bolting for Use in the Petroleum and Natural Gas Industries |
API Standard 53 5th edition | Well Control Equipment Systems for Drilling Wells |
Nace MR0175-2021 | Petroleum and Natural Gas Industries - Material for use in H₂S containing Environments in Oil and Gas |
Pipeline infrastructure demands precise dimensional compatibility to achieve optimal flow dynamics and minimize energy loss. Our production capabilities cover a broad spectrum of nominal diameters and working pressures, tailored to fit specific extraction and processing requirements. Whether your facility requires compact 2-1/16” units for localized pressure control or substantial 4-1/16” configurations for high-volume transmission, our portfolio ensures exact matching. The heavy-duty forged construction combined with these precise dimensions guarantees that every valve provides a solid, vibration-resistant connection, eliminating the risks associated with improper fitting or pressure mismatch in active lines.
2-1/16" 3,000psi
2-1/16" 5,000psi
2-1/16" 10,000psi
2-1/16" 15,000psi
3-1/8" 3,000psi
3-1/8" 5,000psi
3-1/16" 10,000psi
3-1/16" 15,000psi
4-1/16" 3,000psi
4-1/16" 5,000psi
4-1/16" 10,000psi
4-1/16" 15,000psi
Our fluid management solutions have been successfully deployed across a multitude of challenging geographic and climatic zones. From the freezing, abrasive winds of Siberian oil fields to the scorching, highly saline environments of Middle Eastern offshore platforms, these manual gate valves consistently deliver reliable isolation. The global map below illustrates our extensive footprint, reflecting the trust placed in our engineering by international energy and industrial sectors. This widespread adoption is a testament to our rigorous quality control, adaptable material science, and commitment to providing components that perform flawlessly regardless of external environmental extremes.
Constructed from premium-grade carbon steel, stainless steel, and specialized alloy forgings, this valve is engineered to survive the harshest industrial realities. The exterior features a meticulously applied anti-corrosion coating that feels smooth yet highly resilient to the touch, effectively repelling moisture, saline mist, and chemical splashes. Internally, the metallurgical composition delivers exceptional low-temperature impact toughness, ensuring the body will not embrittle or fracture even during sudden thermal shocks or extreme weather exposure.
Depending on spatial constraints and visual monitoring preferences, we offer both Outside Screw and Yoke (OS&Y) and non-rising stem configurations. The architecture of the valve body, seat, and bonnet has been heavily optimized to create a formidable physical isolation barrier. When operating the handwheel, field technicians will notice a distinct, smooth mechanical resistance that translates into precise internal movement, ensuring that the gate lowers with absolute stability to completely sever the fluid path without binding, galling, or excessive torque requirements.
At the heart of this unit is a full-bore design that aligns perfectly with the pipeline, resulting in virtually zero fluid resistance and negligible pressure drop across the valve. This unrestricted flow path is complemented by high-performance metal-to-metal or advanced composite sealing rings. When fully closed, these seals engage with a tight, gas-proof tolerance, guaranteeing zero leakage even when subjected to sudden high-pressure surges or when handling highly viscous, particulate-laden fluids common in heavy extraction processes.
This robust isolation device is heavily utilized across the most demanding sectors of heavy industry. It serves as a critical component in oil and natural gas extraction wellheads, chemical refining manifolds, large-scale industrial water treatment facilities, and high-temperature, high-pressure steam distribution networks. Its proven ability to maintain absolute containment makes it the preferred choice for systems where fluid volatility, toxic exposure risks, and pressure extremes are standard daily conditions.
Downtime is a critical metric in heavy industry, which is why this valve features a highly simplified internal architecture. The design supports rapid online inspections and allows for the seat surfaces to be re-machined without entirely removing the massive unit from the pipeline. Coupled with integrated anti-dust and anti-wear mechanisms that protect the stem threads from abrasive environmental particulates, these features drastically extend the operational lifespan of the equipment while significantly driving down long-term maintenance expenditures.
Quality is verified at every stage of the metallurgical and assembly process. Strictly executing the mandates of API 6A, API 16C, and NACE MR0175, each unit is subjected to punishing hydrostatic and pneumatic pressure tests before leaving the facility. Through comprehensive ISO certifications and independent third-party inspections, we provide documented assurance that every manual gate valve possesses the structural integrity and sealing capability required to protect your personnel, the environment, and your infrastructure.
Recognizing that every piping network has unique connection requirements, we provide deep OEM and ODM customization services. Whether your blueprints specify flanged, threaded, or socket weld ends, we precision-machine the connections to your exact tolerances. Once completed, the equipment is secured in heavy-duty, export-grade wooden crating—specifically designed to absorb transit shocks and prevent moisture ingress—ensuring that your customized fluid control solutions arrive globally in pristine, installation-ready condition.
