FKQ480-5 BOP Control Unit With API Spec 16D Compliance

Main Technical Parameters

Engineered for critical well control operations, our surface blowout preventer (BOP) control systems deliver uncompromising reliability under extreme pressure conditions. The foundation of this equipment lies in its resilient power redundancy architecture. By integrating a high-capacity electric pump alongside dual pneumatic pumps, the system guarantees continuous hydraulic pressure generation even during unexpected rig power or air supply failures. This multi-layered redundancy ensures that the blowout preventer stack can actuate swiftly and decisively during emergency well kick scenarios. Furthermore, the entire structural skid and fluid reservoir are fabricated from heavy-gauge steel, coated with marine-grade anti-corrosion finishes that feel distinctly textured to withstand salt spray and harsh environmental elements. We also offer comprehensive customization options, allowing drilling contractors to tailor accumulator capacities, control valve configurations, and skid dimensions to precisely align with existing rig infrastructure.

Reference to Standards

Compliance with international drilling regulations is non-negotiable when manufacturing well control equipment. Our BOP control units are strictly built and audited against API Spec 16D and API Standard 53 requirements. Before any unit leaves the manufacturing facility, it undergoes a grueling series of quality control assessments. The ASME-certified accumulator bottles are subjected to intense hydrostatic pressure tests to verify structural integrity, while the entire manifold system undergoes meticulous airtightness and fluid flow simulations. This rigorous testing protocol ensures that every valve shift and pump stroke operates with absolute precision. Operators can physically hear the crisp, immediate engagement of the directional control valves during these factory acceptance tests, confirming the system's readiness for field deployment. By adhering to these stringent standards, we provide drilling crews with the confidence that their primary well control barrier will perform flawlessly when it matters most.

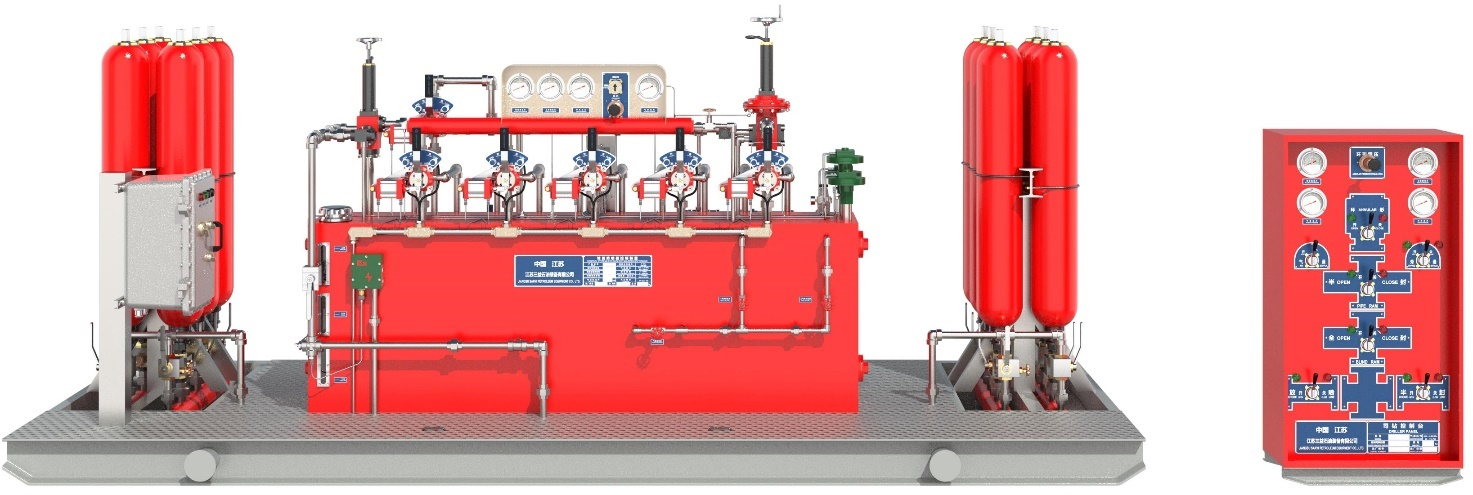

BOP Control Unit: FKQ480-5

The FKQ480-5 model represents our primary pneumatically controlled BOP unit, designed specifically for environments where traditional, highly reliable mechanical actuation is preferred. This configuration utilizes a driller's console that operates entirely on pneumatic signals, providing instantaneous response times across the rig floor. The unit is equipped with twelve 11-gallon accumulator bottles, offering a massive reserve of pressurized hydraulic fluid ready to deploy at a moment's notice. Operators will appreciate the tactile, heavy-duty feel of the stainless steel control levers, which provide positive feedback during operation. To ensure maximum safety in hazardous zones, the FKQ480-5 carries multiple explosion-proof certifications, including CNEX, ATEX, and IECEX. Whether operating in freezing onshore climates or humid offshore environments, the combined aural and visual alarm systems emit a piercing, unmistakable warning to alert personnel of any pressure drops or system anomalies.

Main Technical Parameters

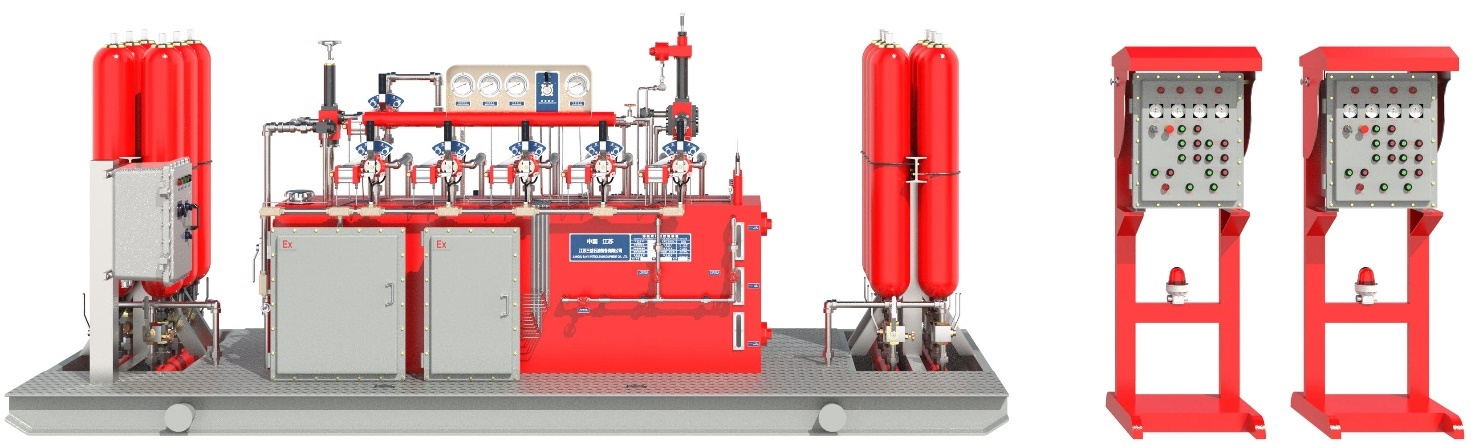

BOP Control Unit: FKDQ480-5

For drilling operations requiring advanced automation and data management, the FKDQ480-5 model integrates programmable logic controller (PLC) technology into the well control architecture. This smart control system transforms traditional pressure management by enabling real-time remote monitoring directly from the driller's cabin. The digital interface provides clear, at-a-glance readouts of accumulator pressures, manifold statuses, and pump operational health. In the event of a pressure deviation, the PLC instantly triggers the combined aural and visual alarms while logging the event data for post-incident analysis. Despite its advanced electronics, the FKDQ480-5 retains the heavy-duty industrial physical construction of its pneumatic counterpart. The touch-sensitive screens are housed in thick, explosion-proof enclosures certified to ATEX and IECEX standards, ensuring the sensitive microprocessors are fully shielded from explosive gases, corrosive drilling muds, and severe mechanical vibrations commonly found on the rig floor.

Main Technical Parameters

Geographic distribution of customers using BOP Control Unit

Our BOP control units have been successfully deployed across a vast array of global oil and gas extraction projects. From the arid deserts of the Middle East to the freezing tundras of Russia, these systems have proven their adaptability in the most demanding climates. Typical application scenarios include:

• Deepwater jack-up platforms requiring strict pressure management.

• Heavy-duty land rigs operating in remote, off-grid locations.

• Complex workover operations and high-pressure well testing.

To support this extensive geographic footprint, we maintain a comprehensive after-sales network. We provide on-site installation, commissioning, and hands-on operational training for rig crews worldwide. Additionally, we maintain a vast inventory of critical spare parts—ranging from accumulator bladders to specialized pump seals—ensuring rapid dispatch to minimize rig downtime. The map below highlights the widespread international trust placed in our well control solutions.

Australia

Egypt

Hungary

Indonesia

Iran

India

Kazakhstan

Kuwait

Malaysia

Nigeria

Oman

Roumania

Russia

Thailand

Turkey

Turkmenistan

Ukraine

Vietnam
