FKQ960-8 BOP Control Unit with 16 Accumulator Bottles

Parameters

The FKQ960-8 BOP Control Unit stands as a critical line of defense for drilling operations, engineered to deliver immediate hydraulic energy for blowout preventers. Constructed with a heavy-duty carbon steel manifold and industrial-grade fittings, the unit provides a reassuringly solid tactile feel during operation, reflecting its rugged durability. At the core of its emergency response capability is a meticulously designed dual-pump redundancy system.

• Dual Power Assurance: By integrating both electric and pneumatic power sources, the unit guarantees rapid, second-level shut-in execution even during total rig power failures.

• Massive Energy Storage: The system houses 16 individual accumulator bottles, each containing 15 gallons of fluid, storing massive pressure reserves to actuate valves instantly when formation kicks occur.

• Risk Mitigation: This configuration eliminates single points of failure and provides drilling crews with absolute confidence in their well-control infrastructure.

Reference to Standards

Compliance is non-negotiable when dealing with high-pressure well control. This equipment is manufactured in strict accordance with industry regulations, ensuring every valve, manifold, and pressure vessel meets the most rigorous international safety benchmarks. The accumulator bottles carry full ASME certification, verifying their structural integrity under extreme internal pressure through exhaustive metallurgical testing.

Furthermore, the unit features comprehensive explosion-proof certifications for all electrical components and sensors. This multi-layered compliance strategy means procurement teams and rig managers can deploy the system globally without regulatory friction, knowing the hardware complies with strict safety directives for hazardous zones.

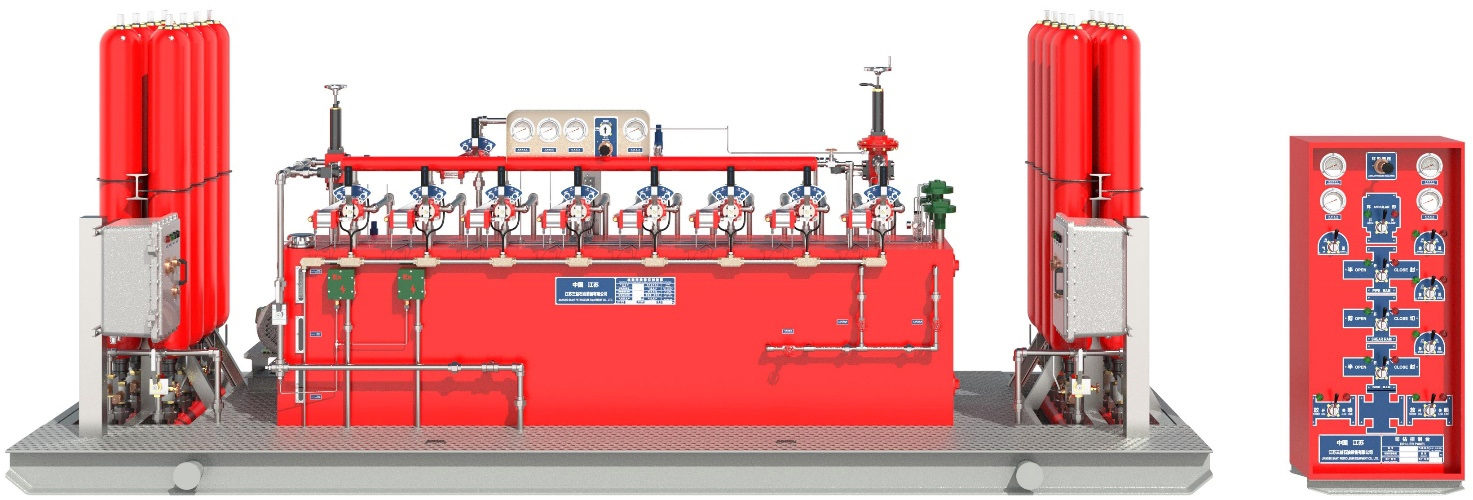

BOP Control Unit: FKQ960-8

Operational environments vary drastically, and the FKQ960-8 is engineered to adapt. From the blistering heat of desert drilling to the freezing -40℃ extremes of arctic land rigs, the unit can be outfitted with custom insulation enclosures and heavy-duty heaters to maintain optimal hydraulic fluid viscosity. For offshore platforms, the exterior receives a marine-grade anti-corrosion epoxy treatment—a thick, protective coating that resists the relentless degradation of high-salt fog and moisture, emitting the distinct scent of fresh industrial enamel upon delivery.

Engineering teams can also request specific structural layouts, including specialized skid-mounted or portable configurations. We provide dedicated P&ID drawings and precise pump-sizing calculations to match exact rig specifications, ensuring the physical footprint aligns perfectly with available deck space.

Main Technical Parameters

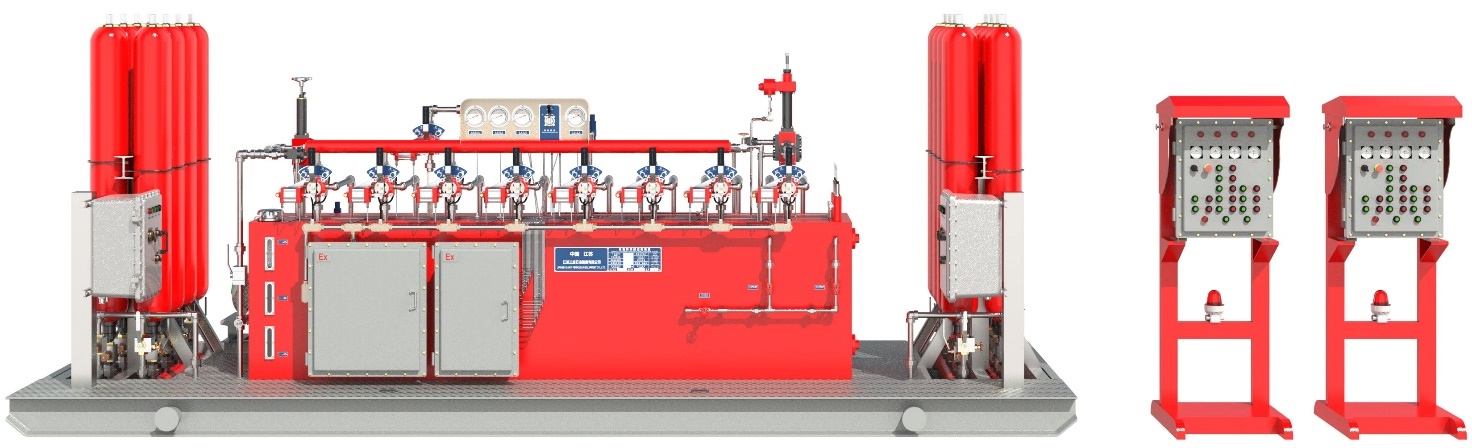

BOP Control Unit: FKDQ960-8

Transitioning to intelligent rig management, the FKDQ960-8 variant introduces programmable logic controller (PLC) technology to the driller's console. This upgrade replaces traditional mechanical feedback with precise digital monitoring. Operators interact with a responsive interface that allows for one-touch shut-in sequences, dramatically reducing reaction times during critical well-control events. The tactile resistance of the physical override buttons ensures operators maintain a physical connection to the machinery when it matters most.

The system is paired with a combined aural and visual alarm setup; the piercing decibel level of the siren and the intense strobe of the warning lights instantly cut through the ambient noise of a busy rig floor. Optional wireless remote controls further enhance operational flexibility, allowing rig personnel to actuate the blowout preventer from safe distances.

Main Technical Parameters

Geographic distribution of customers using BOP Control Unit

Maintaining continuous drilling operations requires more than robust hardware; it demands an unwavering global support network. Our BOP Control Units are currently deployed across diverse geographic regions, supported by a comprehensive after-sales infrastructure. We provide international field technical support, ensuring that expert engineers are available for installation, commissioning, and emergency troubleshooting. Rig operators benefit from a reliable supply chain of original factory spare parts, minimizing downtime during routine maintenance. Additionally, we offer complete recertification services to extend the lifecycle of the equipment, ensuring it continues to meet API standards years after initial deployment. The regions below represent the extensive footprint of our deployed systems, reflecting the trust placed in our well-control solutions worldwide.

Australia

Egypt

Hungary

Indonesia

Iran

India

Kazakhstan

Kuwait

Malaysia

Nigeria

Oman

Roumania

Russia

Thailand

Turkey

Turkmenistan

Ukraine

Vietnam
