In modern drilling and well intervention, maintaining absolute wellbore integrity remains a non-negotiable baseline for safety. It ensures strict regulatory compliance on every rig. You rely on these heavy-duty systems to protect your crews. They also safeguard the surrounding environment from catastrophic damage. Relying on sub-standard or improperly specified well control equipment exposes operations to severe risks. It can trigger catastrophic blowouts and force immediate regulatory shutdowns. Companies also face massive environmental liabilities when containment fails. When pressures spike unexpectedly, equipment failure is simply not an option. You must deploy the right preventive technology from day one.
This guide breaks down the technical mechanics of the annular blowout preventer. We evaluate primary design types used actively in the field. You will discover a strict, API-aligned framework for selecting and specifying equipment. We provide actionable insights for deploying components in demanding field applications. This ensures your rig operates securely during high-pressure well-kill events.
An annular BOP uses a reinforced elastomeric packing element to create a universal seal around any drill string component—or an open hole—serving as the first line of defense in oilfield well control equipment.
Design variations (spherical vs. tapered packing elements) directly impact vertical footprint, maintenance access, and operational longevity.
Procurement decisions must be driven by API 16A compliance, precise bore/pressure ratings, and specific environmental variables (e.g., H2S presence, extreme temperatures).
Proactive maintenance and strict element replacement schedules are critical for avoiding unexpected rig downtime.

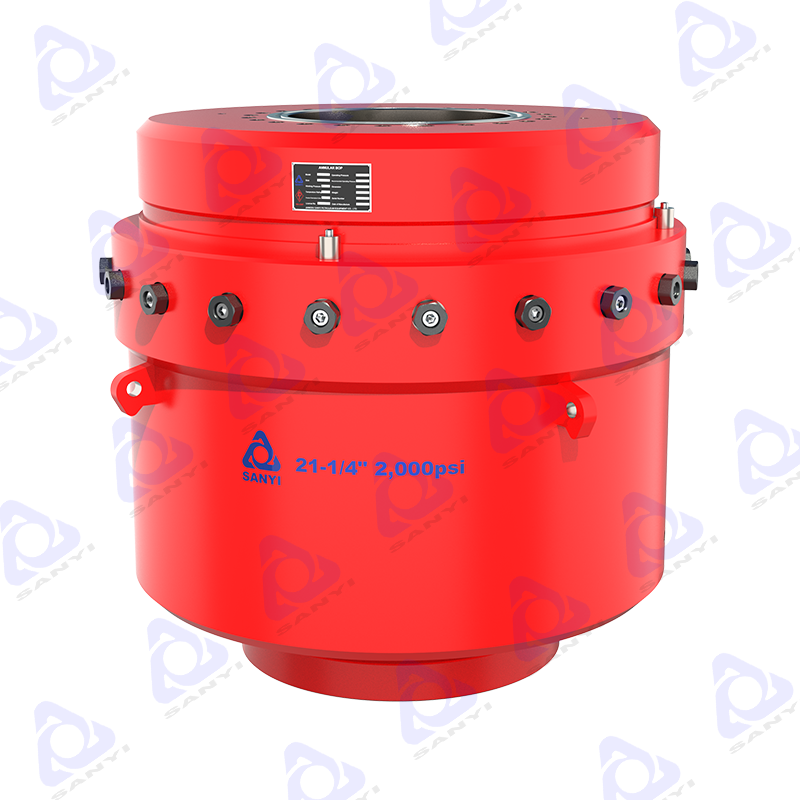

An annular BOP functions as a massive, specialized valve positioned at the top of the blowout preventer stack. It utilizes a highly flexible, rubber-like packing element. This element seals the annular space between the drill pipe and the wellbore. You rely on it as the first line of defense during a well kick.
The actuation mechanism relies entirely on hydraulic pressure. Rig personnel pump hydraulic fluid from the accumulator unit into the closing chamber. This fluid forces a large internal piston upward. As the piston rises, it displaces the elastomeric packer inward. The rubber squeezes tightly to close around the drill string. It can also completely seal an open hole in emergency scenarios.
This design offers a distinct operational advantage. Ram preventers require precisely sized blocks to match specific pipe diameters. The annular BOP working principle allows the packing element to seal around variable shapes seamlessly. It easily conforms to kellys, drill collars, tool joints, and wireline cables. You can even strip drill pipe through the closed element under active wellbore pressure.
However, operators must account for critical fail-safe considerations. The device depends heavily on sustained accumulator pressure to maintain a tight seal. Furthermore, the elastomeric element endures repeated cyclic loading. Structural integrity weakens over time. You must monitor rubber degradation closely to prevent failure during high-stress well events.
Manufacturers build these devices using two distinct packer geometries. Each geometry serves different spatial and operational requirements on the rig.
The spherical packing element design represents a highly popular configuration. It uses a curved, dome-like rubber packer reinforced with steel flappers. You will find this design ideal for high-frequency pipe stripping operations. The spherical shape allows for even stress distribution across the rubber matrix. It tends to deliver a longer fatigue life compared to angular designs.
The tapered or conical packing element design uses an angular, wedge-shaped packer. The hydraulic piston forces this wedge directly upward and inward. This design generally features a lower vertical profile. You often see it deployed on rigs constrained by strict overhead space limits. It also performs well in highly specific offshore applications where stack height poses a challenge.
Housing and cover configurations also dictate maintenance speed. A traditional bolted cover remains exceptionally reliable. However, it requires significant manual labor and time to remove during element replacement. A wedge or latched cover design allows for rapid disassembly. It dramatically reduces rig maintenance downtime when crews perform routine element change-outs.
Spherical vs. Tapered Packing Elements Overview
Design Feature | Spherical Element | Tapered Element |
|---|---|---|
Packer Shape | Curved, dome-like | Angular, wedge-shaped |
Stress Distribution | Evenly distributed across the sphere | Concentrated along the taper angle |
Best Application | High-frequency stripping operations | Space-constrained rig environments |
Vertical Profile | Taller stack footprint | Lower stack footprint |
Rig crews depend on the annular blowout preventer for several crucial procedures. It acts as the primary tool for initial kick response. When formation fluids invade the wellbore, the driller activates this unit immediately. It halts fluid influx instantly. This gives the crew time to configure secondary ram preventers for heavier well-kill operations.
Pipe stripping represents another major application. You must often move the drill string up or down the hole while maintaining annulus pressure. This procedure proves crucial for circulating heavy mud to kill the well.
Follow these standard steps during a pipe stripping procedure:
Close the annular element firmly around the drill pipe body.
Adjust the closing pressure regulator to allow the pipe to slide smoothly.
Bleed off slight accumulator pressure as the tool joint approaches the element.
Pull or push the tool joint slowly through the rubber packer.
Increase the closing pressure immediately after the joint passes to maintain the seal.
Variable geometry sealing highlights the versatility of this equipment. You must often secure the well when non-standard pipe sizes occupy the bore. It seals efficiently around wireline tools or casing strings. This eliminates the need to change steel ram blocks for every different pipe diameter.
Complete Shut-In (CSO) capability allows the unit to seal an entirely open hole. The rubber pushes completely to the center to block the bore. You should restrict this practice to true emergencies. Performing a CSO places extreme wear on the elastomeric element. It severely degrades the rubber and shortens its operational lifespan.
Specifying the correct unit requires precise engineering data. You must evaluate bore size and working pressure ratings first. Match the equipment to your exact maximum anticipated surface pressure (MASP). Common wellbore configurations include 11-inch 5,000 psi systems or 13-5/8-inch 10,000 psi variants. Never underestimate the pressure requirements.
Certification standards protect your personnel and assets. An API 16A annular BOP meets rigorous global standards set by the American Petroleum Institute. The API dictates strict design rules. They mandate precise material traceability and extensive hydrostatic testing. You must demand API monograms on all critical pressure-control components.
Environmental and material compatibility directly influences rubber survival. You must select elastomers based on drilling mud composition and operating temperatures. Natural rubber performs excellently in water-based muds. Nitrile (NBR) resists degradation in oil-based muds. Neoprene handles extreme low temperatures well. Furthermore, you must ensure NACE MR0175 compliance for sour gas environments. Hydrogen sulfide (H2S) rapidly destroys non-compliant metals and rubbers in oilfield well control equipment.
Evaluating an annular BOP manufacturer requires intense scrutiny. Require documented fatigue testing for their packing elements. Demand full material test reports (MTRs) for every steel component. You should also request transparent factory acceptance testing (FAT) records. A reputable vendor welcomes these audits.
Standard models do not fit every rig. You might need to specify a custom annular BOP. Customization covers non-standard flange types or specialized alloy bodies. Extreme arctic environments or subsea conditions often demand customized metallurgy. You might also need specific footprint replacements to fit an older OEM rig substructure perfectly.
Initial capital expenditure represents only a fraction of the actual equipment cost. Element lifespan and maintenance accessibility drive your overall operational efficiency. If a cover takes twelve hours to unbolt, you lose valuable rig time. Fast-acting latched covers save money by keeping the rig operational.
Inspection protocols prevent catastrophic blowouts on the drill floor. You must perform daily visual checks of the hydraulic lines and housing. Rig crews must execute scheduled pressure testing routines. API Standard 53 outlines specific intervals for these tests. They verify seal integrity and confirm the hydraulic closing system works flawlessly.
Knowing when to change the packing element requires careful tracking. You should record the number of pressure tests performed. Count every stripping cycle closely. Look for physical degradation during visual inspections. Extrusion occurs when high pressure squeezes the rubber into steel gaps. Chunking happens when large pieces of the elastomer tear away.
We advise replacing the element immediately if it fails to hold specified test pressures. Extending element life beyond manufacturer recommendations invites tremendous implementation risk. High-pressure gas kicks will easily exploit weakened rubber. This leads to complete seal failure and uncontrollable wellbore fluid release.
Selecting the proper blowout preventer requires balancing physical design limitations against exact wellbore conditions. You must account for regulatory demands and everyday operational workflows. Properly specified equipment protects your crew and secures the wellbore against unpredictable pressure spikes.
Buyers should conduct a thorough audit of their rig's maximum pressure thresholds. Review your fluid environments and temperature extremes before requesting vendor quotes. Always verify API 16A certifications and material test reports.
Contact our engineering team for technical sizing assistance. We provide comprehensive API documentation reviews to ensure compliance. Reach out today to discuss custom manufacturing capabilities tailored for your specialized well control systems.
A: An annular unit uses a flexible rubber element to seal around almost any pipe shape or an open hole. It provides a universal seal. A ram BOP uses heavy steel blocks equipped with specific cutouts. Rams seal around exact pipe sizes, shear the drill string, or seal a blind hole entirely.
A: Lifespan depends heavily on operational variables rather than a chronological timeline. High stripping frequency, oil-based muds, and extreme temperatures degrade the rubber faster. Crews typically replace the element based on total cycle counts or when it fails to pass routine regulatory pressure tests.
A: Yes. Most modern units can achieve a Complete Shut-Off (CSO) on an entirely open bore. However, forcing the rubber to close a completely empty space significantly degrades the packing element. Operators generally reserve CSO operations for absolute emergencies.
A: API 16A serves as the recognized global standard for blowout preventers. It dictates strict metallurgical, design, and pressure-testing requirements. This certification ensures the equipment will perform reliably under extreme, life-threatening field conditions, minimizing the risk of catastrophic failure.
