How to Choose a BOP Control Unit for Onshore and Offshore Drilling

Views: 0     Author: Site Editor     Publish Time: 2026-09-23      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

A blowout preventer is only as reliable as the system commanding it to act. The closing unit stands as the ultimate fail-safe in any well control operation. It serves as a critical risk mitigation asset rather than just standard rig iron. Incorrectly sizing this equipment invites severe consequences. Failing to account for specific rig environments, whether land or subsea, leads directly to regulatory non-compliance. Worse, you risk major rig downtime or catastrophic well control failure. We need a structured framework to navigate these operational hazards safely. This guide will walk you through evaluating and sizing your system correctly. You will learn how to source reliable equipment based on exact operational demands. We will also cover environmental constraints and strict compliance mandates to ensure total rig safety. By applying these principles, you protect your crew and your drilling schedule.

Key Takeaways

  • Verifiable compliance with API Spec 16D is the non-negotiable baseline for any modern blowout preventer control system.

  • Onshore and offshore rigs dictate distinct requirements for footprint, control interfaces (discrete hydraulic vs. MUX), and corrosion protection.

  • Properly sizing an accumulator unit requires exact volumetric calculations to guarantee sufficient functional fluid under total power loss.

  • Selecting a BOP control unit manufacturer hinges on their transparency during Factory Acceptance Testing (FAT) and lifecycle support capabilities.

The Compliance Baseline: Specifying an API 16D Control Unit

Industry regulators demand absolute certainty during well control events. API Spec 16D provides this certainty. It serves as the strict global standard for designing, manufacturing, and testing well control equipment systems. When you specify an API 16D control unit, you guarantee baseline reliability. This standard removes the guesswork from emergency response planning. It dictates exactly how a system must behave when rig power fails.

Core Mandates and Performance Metrics

The standard strictly governs several physical parameters. First, it dictates pump redundancy. A compliant system must utilize multiple independent power sources to recharge the accumulators. Second, it enforces maximum closing response times. For example, hydraulic systems typically must close ram preventers within 30 seconds. Annular preventers require closure within 45 seconds. Finally, the standard calculates the minimum required fluid reserves. You must maintain enough stored hydraulic energy to execute specific functional sequences without relying on rig power.

The Evaluation Lens: Avoiding Counterfeits

You will often encounter vendors claiming their equipment is "API-equivalent." You must reject these claims immediately. True compliance requires verifiable certification. You need complete material traceability for every pressure-containing component. Third-party design reviews are also essential. These independent audits prove the system meets rigorous engineering requirements.

Common Mistake: Ignoring Certification Scope

Many operators accept a general facility ISO certificate instead of a specific API 16D monogram for the equipment. Always verify the manufacturer holds an active API 16D license for the specific product category you intend to purchase.

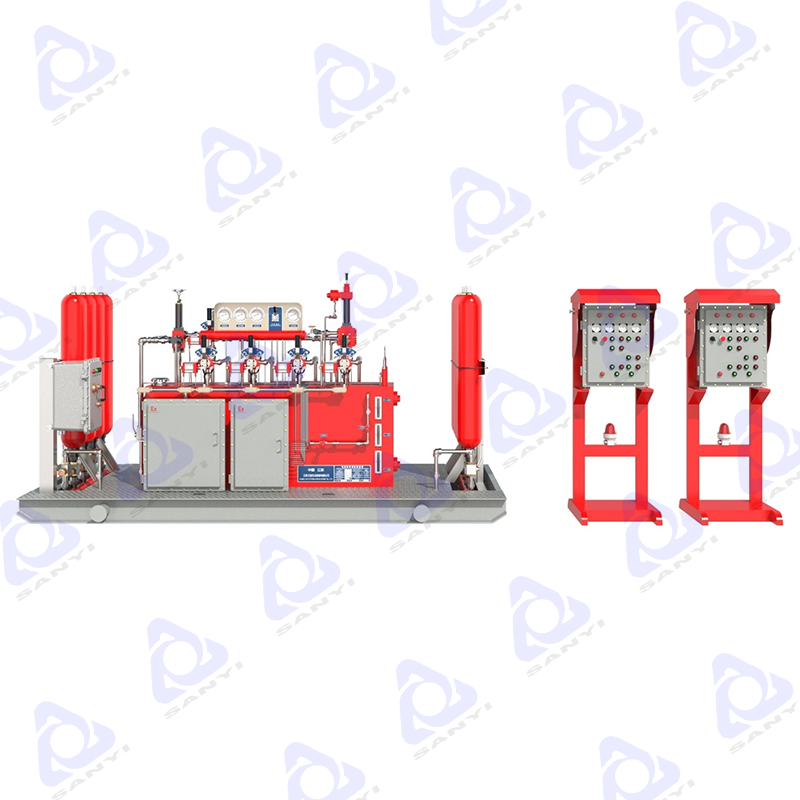

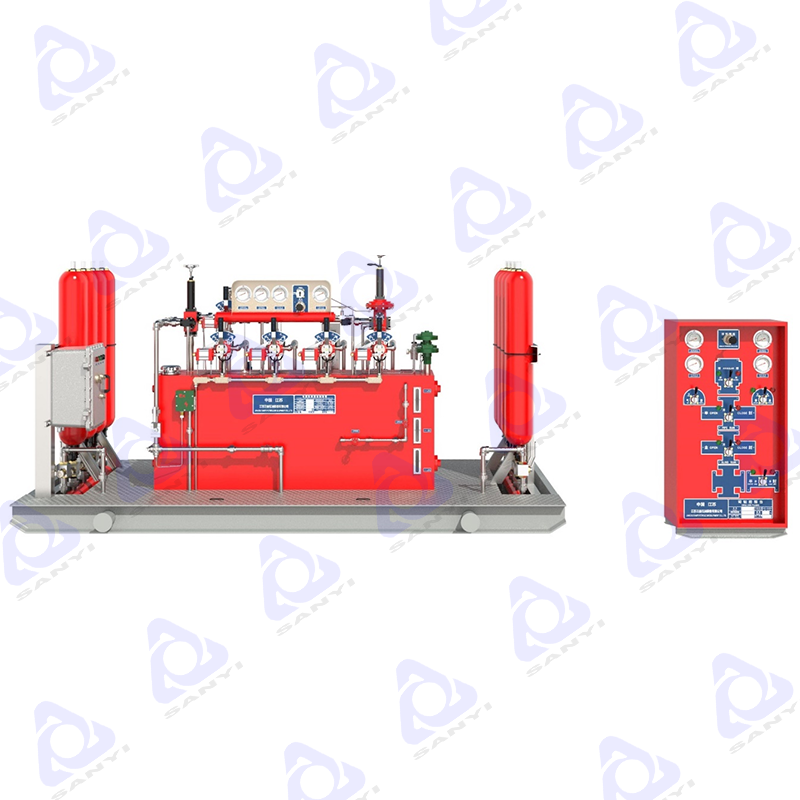

BOP Control Unit for Onshore and Offshore Drilling

Application Environment: Onshore vs. Offshore System Requirements

Rig location dictates design architecture. You cannot deploy a generic system across all drilling environments. Each operational theater introduces unique physical and environmental constraints. You must align your specification sheet directly with these realities.

Onshore Drilling Dynamics

Land rigs prioritize footprint efficiency. Space on a drilling pad is highly constrained. Therefore, mobility and modularity become critical design factors. Most operators prefer skid-mounted setups for these applications. These configurations allow rapid rig-up and rig-down sequences between well pads. You will frequently see standardized equipment like the FKQ BOP control unit deployed on land operations. These series offer rugged simplicity. They utilize discrete hydraulic controls perfectly suited for surface blowout preventer stacks.

Offshore Drilling Complexities

Marine environments demand advanced engineering. You face harsh weather, corrosive saltwater, and immense water depths. Deepwater operations cannot rely on traditional discrete hydraulic signals. The signal delay over thousands of feet of umbilical hose is too great. Instead, offshore rigs require multiplex (MUX) electro-hydraulic control systems. These systems send electronic signals to subsea pods, triggering local hydraulic valves instantly.

Offshore equipment also requires deepwater subsea accumulator modules. These localized fluid banks prevent pressure drop across the umbilical. Furthermore, topside equipment needs advanced offshore coatings. Extreme offshore corrosion resistance is non-negotiable for marine survival.

Aligning Specs with Reality

You must map your specifications to the rig's actual lifecycle. Understand the environmental severity before requesting quotes. This structured approach prevents expensive over-engineering. It also protects you from dangerous under-speccing.

Onshore vs. Offshore System Parameters

Parameter

Onshore (Land Rig)

Offshore (Subsea/Marine)

Signal Transmission

Discrete hydraulic lines

Multiplex (MUX) electro-hydraulic

Footprint Priority

Compact, skid-mounted mobility

Modular layout distributed across deck

Accumulator Location

Surface unit (near rig floor)

Surface unit plus subsea mounted pods

Corrosion Protection

Standard industrial enamel/epoxy

Marine-grade NORSOK approved coatings

Sizing the Hydraulic BOP Control System and Accumulator Unit

Sizing is an exact science. You cannot estimate fluid requirements or guess pressure thresholds. The engineering logic behind sizing the accumulator unit relies on strict mathematical formulas.

Volumetric Capacity Calculations

The system must hold enough usable hydraulic fluid volume to perform emergency functions. We call this the usable fluid volume. It differs significantly from the total physical volume of the bottles. Usable fluid accounts for the pre-charge nitrogen pressure and the minimum operating pressure of the stack. A properly sized hydraulic BOP control system guarantees you can execute a full close, open, and close sequence on required components. It must do this entirely without external rig power. Furthermore, API mandates a strict safety factor on top of the raw calculated volume.

Matching Pressure Ratings

You must match system operating pressures to the blowout preventer stack. Typical systems operate between 3,000 and 5,000 psi. Some High-Pressure/High-Temperature (HPHT) applications require even higher ratings. The control pressure must provide enough force to shear drill pipe and seal the wellbore. If your operating pressure falls short, the shear rams will fail during a critical blowout event.

Evaluating Pump Redundancy Criteria

Stored fluid handles the immediate emergency. However, the system must recover and recharge quickly. We evaluate pump redundancy by looking at the ratio and recovery rates of primary and secondary pumps. Primary pumps usually run on electric triplex setups. Secondary pumps utilize pneumatic rig air. These independent systems must recharge the accumulators within strict API time limits. If the electric pump fails, the pneumatic pump must carry the load.

Best Practice: Environmental Temperature Accounting

Always factor ambient temperature into your volumetric calculations. Extreme cold reduces nitrogen pre-charge effectiveness. You may need additional accumulator bottles in arctic environments to maintain the same usable fluid volume.

Standard Configurations vs. Custom BOP Control Systems

Procurement teams often debate between off-the-shelf units and custom-engineered solutions. Both paths offer distinct advantages. The correct choice depends entirely on your drilling profile.

When to Choose Standard Catalog Configurations

Standard configurations make business sense for predictable environments. Standardized land drilling profiles rarely require exotic engineering. They use predictable stack arrangements, such as one annular and two rams. In these scenarios, off-the-shelf FKQ series units perform exceptionally well. They offer proven reliability, simplified maintenance, and immediate availability. Field mechanics already understand how to troubleshoot them. Parts remain abundant across global supply chains.

When to Build a Custom Solution

Certain operational triggers demand specialized engineering. You should transition to a custom BOP control system when facing the following scenarios:

  1. Non-Standard Stack Designs: When operating multiple annulars or specialized shear rams requiring unique fluid volumes.

  2. HPHT Environments: When extreme wellbore pressures demand elevated shearing forces beyond standard 3,000 psi limits.

  3. Arctic or Desert Extremes: When ambient temperatures require specialized winterization enclosures or extreme heat dissipation systems.

  4. Automated Rig Integration: When you need seamless integration with proprietary automated rig floor software and digital monitoring interfaces.

Custom systems require transparent assessments of lead times. You cannot buy them off the shelf. They demand extended engineering phases. Factory Acceptance Testing (FAT) takes longer due to unique performance criteria. You must factor these delays into your rig deployment schedules. Standard units ship quickly, allowing faster rig mobilization.

Shortlisting and Vetting a BOP Control Unit Manufacturer

Your relationship with the equipment vendor extends for decades. You are not buying a consumable product. Therefore, vetting the supplier requires rigorous due diligence.

Evaluating Engineering Competence

Ask yourself if the BOP control unit manufacturer acts as a true partner or just an order taker. A competent manufacturer actively assists in volumetric calculations. They will challenge your assumptions and help optimize system sizing. They possess deep engineering teams capable of answering complex hydraulic flow questions. Avoid vendors who simply ask for a part number without understanding your well control objectives.

Acceptance Inspection and FAT Transparency

Never bypass Factory Acceptance Testing. The FAT proves the equipment functions as engineered before it leaves the facility. You must demand full transparency during this phase. Buyers require unrestricted access to specific testing documents:

  • Hydrostatic pressure test charts verifying component integrity.

  • Functional test logs proving response times meet API standards.

  • Integration testing protocols demonstrating pump recharge rates.

  • Electrical continuity checks for remote panels.

If a vendor hesitates to provide these charts, disqualify them immediately.

Lifecycle and Aftermarket Support

A reliable BOP control unit remains useless without global support. Assess the manufacturer’s downstream supply chain. Rubber components degrade. Valves experience wear. You need immediate global access to critical replacement parts. Check their inventory for regulator kits, bladder kits, and directional control valves. Furthermore, verify they employ certified field service technicians. Localized support prevents a minor component failure from causing weeks of rig downtime.

Conclusion

Sourcing a reliable control system represents a direct investment in rig safety and operational continuity. Regulatory compliance serves as the baseline, not the finish line. You must align your equipment specification directly with your onshore or offshore environment to ensure immediate response during a crisis.

To move forward effectively, follow these action-oriented next steps. First, compile your exact BOP stack data, including required closing volumes and operating pressures. Next, define your environmental constraints, noting extreme temperatures or offshore requirements. Finally, contact certified manufacturers to request a detailed sizing worksheet. Engage them in technical consultations early in your planning phase. This structured approach guarantees you deploy equipment capable of securing the well under any circumstance.

FAQ

Q: How do you calculate the required capacity for an accumulator unit?

A: You calculate capacity by summing the fluid volume required to close, open, and close the BOP stack components. You must then add the API-mandated safety factor (typically 50% extra). The calculation accounts for pre-charge nitrogen pressure and the minimum operating pressure needed to shear pipe or maintain a seal.

Q: What is the standard closing time required for a hydraulic BOP control system?

A: API Spec 16D dictates specific maximum response times. Generally, hydraulic systems must close ram preventers within 30 seconds. Annular preventers require closure within 45 seconds, though larger annulars (over 18-3/4 inches) may allow up to 60 seconds. Subsea MUX systems have distinct, often faster, signal response requirements.

Q: Can an older control unit be upgraded to meet API 16D standards?

A: Upgrading is sometimes feasible but carries significant risks. You can retrofit new pumps, replace valves, and add accumulator bottles. However, you must establish full material traceability and recertify the entire system through a third party. Often, purchasing a new compliant system proves safer and faster than complex retrofitting.
