Blowout preventers stand as the ultimate safeguard in modern drilling operations. They actively prevent catastrophic well control events from escalating into disasters. Their proven reliability also minimizes extensive non-productive time during critical drilling phases. Engineers often debate the merits of a ram BOP vs annular BOP configuration. However, this debate usually implies a false choice. Successful drilling operations actually require both technologies to function systematically within a unified BOP stack. This article clarifies their distinct mechanical roles and specific pressure capabilities. You will learn the operational factors engineers must evaluate when specifying this critical hardware. We will also explore how strict industry standards guide the equipment selection process.
Annular BOPs provide versatile, first-line sealing against various pipe sizes or open holes but generally have lower pressure ratings.
Ram BOPs deliver high-pressure, specialized control (sealing, cutting, or holding specific pipe diameters) and form the heavy-duty foundation of the BOP stack.
Selecting the right configuration requires analyzing wellbore pressure expectations, rig space constraints, and API 16A compliance.
Evaluating a ram BOP supplier should prioritize verifiable testing data, elastomer availability, and long-term maintenance support over lowest initial cost.
Unplanned formation kicks pose immediate threats to rig personnel and the surrounding environment. When well control events occur, they bring severe safety risks and massive regulatory penalties. Drilling operations face significant operational losses if they cannot contain these pressure surges immediately. The blowout preventer stack serves as the definitive barrier against these dangerous blowouts. Operators must configure this equipment flawlessly to prevent catastrophic failures.
Primary well control relies on the hydrostatic pressure of the drilling mud. When this primary barrier fails, secondary well control depends entirely on the rapid, sequential activation of the BOP stack. Teams mount the BOP stack directly on the wellhead. It functions as an integrated unit rather than a collection of independent valves. During an emergency, driller actions trigger specific components in a calculated order. They usually activate the upper annular preventer first. If pressure continues to rise, they engage the lower ram preventers. This systematic integration ensures multiple layers of fail-safe protection.
Specifying drilling well control equipment extends far beyond basic mechanical functionality. Operators must adhere to strict industry standards. The American Petroleum Institute (API) Specification 16A dictates rigorous manufacturing and testing protocols for all drill-through equipment. Compliance guarantees that the equipment withstands extreme pressure cycles and harsh temperature variations. Reliable equipment lifespan demands precise metallurgy and traceable manufacturing processes. You must verify these certifications before deploying any well control hardware to the field.

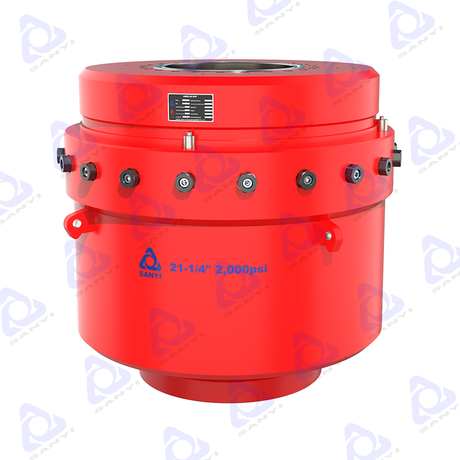

Engineers position the annular blowout preventer at the very top of the BOP stack. This component offers unmatched operational versatility. It can close around any shape or size of the drill string. Whether you have drill pipe, casing, or wireline in the hole, the annular preventer adapts to seal the annulus. In emergencies where no pipe is present, it can even seal an open hole entirely.
The internal mechanics rely on a massive, reinforced elastomer packing unit. When the driller activates the system, hydraulic pressure pushes a massive piston upward. This piston forces the elastomer element inward, squeezing it tightly against the drill string. Steel reinforcing ribs within the rubber prevent the element from extruding under high pressure. This simple but powerful mechanism ensures an immediate, conforming seal.
Annular preventers shine during dynamic drilling scenarios. They provide critical flexibility for stripping operations. Stripping allows drillers to slowly move the pipe up or down while maintaining pressure containment. The elastomer flexes slightly, letting tool joints pass through without losing the seal. Furthermore, annulars offer a much faster initial response for immediate wellbore sealing. Drillers do not need to know the exact pipe diameter to activate this first-line defense.
Despite their versatility, annular preventers carry specific operational limitations. Elastomer wear remains the primary concern. Continuous stripping operations degrade the rubber packing unit quickly. Additionally, annular preventers max out at lower pressure ratings. They typically handle between 5,000 and 10,000 psi. They cannot match the extreme pressure tolerance of their steel-ram equivalents.
Common Mistake: Relying on an annular preventer for repeated open-hole closures. This practice destroys the elastomer rapidly and compromises the unit's ability to seal around pipe later.

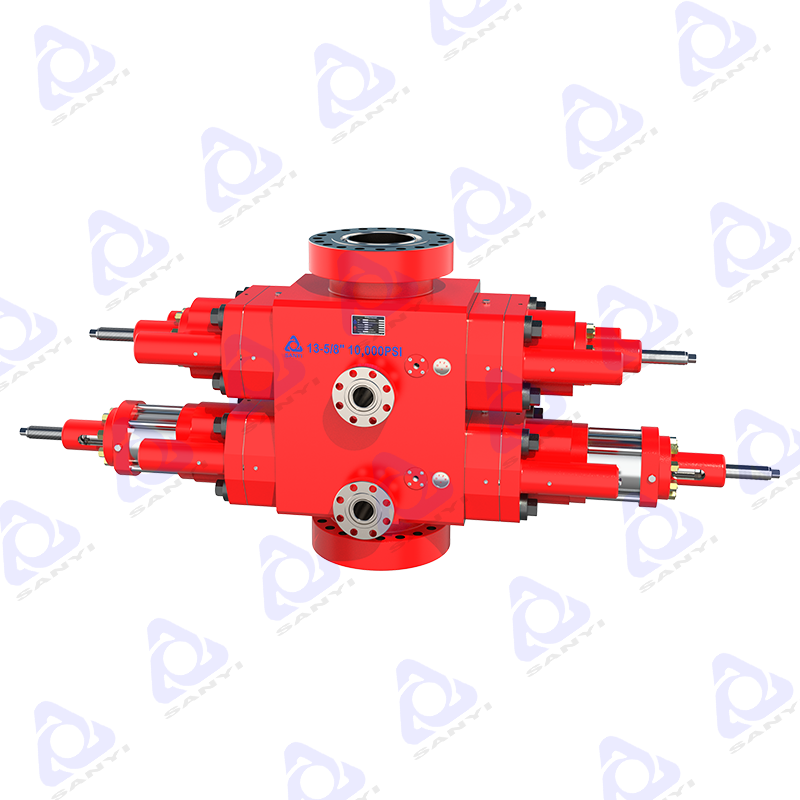

You will find ram blowout preventers positioned directly below the annular BOP. These heavy-duty components handle extreme wellbore pressures. Modern drilling environments frequently expose them to 15,000 psi or higher. They achieve this massive containment strength via horizontally opposed steel rams. Hydraulic pistons drive these massive steel blocks toward the center of the wellbore, creating a rigid and impenetrable barrier.
Ram preventers are highly specialized. Operators swap different ram blocks into the cavities based on the current drilling phase.
pipe ram BOP: Engineers design these blocks with semi-circular cutouts. These cutouts match a specific, predetermined diameter of drill pipe. When closed, they seal the annular space tightly around the pipe while supporting its immense weight.
blind ram BOP: These rams feature flat, rubber-faced steel plates. They completely seal an open wellbore when no drill pipe is present inside the stack.
shear ram BOP: This represents the final-resort emergency tool. It comes engineered with hardened steel blades. When activated, it physically cuts through the drill string and seals the well instantly, preventing a total blowout.
The industry heavily relies on proven, standardized designs for these critical components. The U type ram BOP stands out as the most prevalent design globally. Operators favor it for its exceptional reliability and ease of maintenance. It features a compact footprint suitable for tight rig substructures. More importantly, its hinged bonnets allow crews to perform rapid ram block changes safely and efficiently during operations.
Operational Comparison Matrix
Evaluation Criteria | Annular Blowout Preventer | Ram Blowout Preventer |
|---|---|---|
Primary Sealing Mechanism | Hydraulically driven elastomer element | Horizontally opposed solid steel blocks |
Pressure Tolerance | Moderate (typically 5,000 - 10,000 psi) | Extreme (often 10,000 - 15,000+ psi) |
Pipe Compatibility | Variable (seals around any shape/size) | Fixed (requires exact size match or flat blades) |
Stripping Operations | Highly suitable and commonly used | Not suitable (except for specialized variable rams) |
Emergency Cutting | Incapable | Capable (Shear rams only) |
The structural composition of these units dictates their pressure thresholds. Steel ram blocks tolerate significantly higher pressures than flexible elastomers. When a massive kick surges up the wellbore, the rigid steel gates of a ram preventer provide absolute structural integrity. Conversely, the annular elastomer might extrude or fail if exposed to pressures beyond 10,000 psi for extended periods.
Annular preventers follow a "one size fits most" philosophy. Their adaptability makes them invaluable during unpredictable situations. However, ram preventers demand meticulous specificity. A standard pipe ram will fail to seal if the pipe diameter does not match the ram block's cutout exactly. This requires rig crews to swap ram blocks whenever the drill string schedule changes.
Maintenance requirements differ heavily between the two systems. Annular packing units experience frequent friction wear during standard operations. Crews must replace these large rubber elements regularly to maintain compliance. Replacing an annular packing unit takes considerable time. In contrast, changing ram blocks requires less time, especially on modern U-type models. However, the internal seals within the ram cavities demand rigorous inspection to prevent hydraulic fluid leaks.

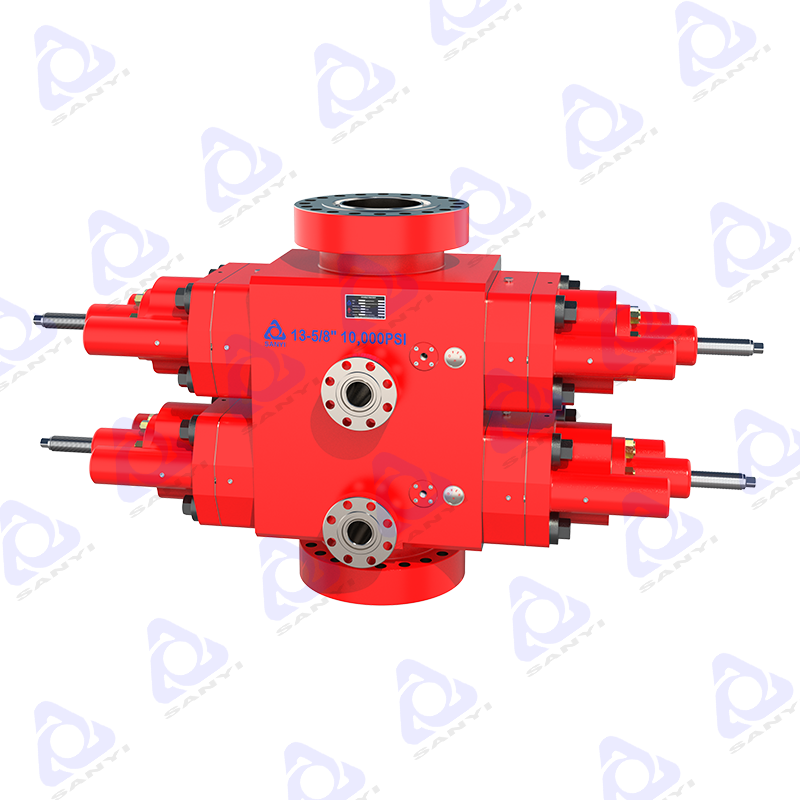

Rig substructure constraints dictate your BOP stack configuration. Offshore platforms and large land rigs can accommodate massive, towering stacks. Smaller rigs struggle with vertical height limitations. Annular preventers add significant height to the stack. Ram preventers offer more flexibility through single or double cavity configurations. A double ram body houses two sets of rams in one compact housing, saving critical vertical space.
Procuring well control equipment requires intense scrutiny. When shortlisting a ram BOP supplier, you must look beyond basic marketing claims. Demand verifiable API 16A certifications upfront. Thoroughly review their material traceability records. Every major steel component must have corresponding metallurgical testing reports. Quality suppliers provide non-destructive examination (NDE) data to prove their forgings lack internal micro-fractures.
Move your procurement focus toward operational readiness and supply chain reliability. The initial acquisition is only the first step. You must evaluate the availability of OEM replacement parts. Ask suppliers about their typical lead times for replacement elastomers and custom ram blocks. Evaluate their field service support network. If a component fails during a drilling campaign, you need immediate technical support to minimize rig downtime.
Risk assessments for your specific drilling campaign must drive your stack configuration. Redundancy planning ensures you always have a backup barrier available. Deepwater or high-pressure wells require complex, highly redundant stacks. Shallow, low-pressure wells permit simpler configurations.
Common Redundancy Configurations
Configuration Type | Stack Arrangement (Top to Bottom) | Typical Application Scenario |
|---|---|---|
Standard Land Rig | 1 Annular + 1 Blind Ram + 1 Pipe Ram | Conventional onshore drilling with standard pressure profiles. |
High-Pressure Land | 1 Annular + 1 Blind/Shear Ram + 2 Pipe Rams | Complex onshore wells demanding extra pipe sealing redundancy. |
Offshore / Deepwater | 2 Annulars + 1 Shear Ram + 1 Blind Ram + 3 Pipe Rams | Extreme risk environments requiring maximum fail-safes. |
Best Practice: Always position the blind or shear rams above the lowest pipe rams. This ensures you can secure the well and cut the pipe while maintaining a lower barrier against formation pressure.
Understanding the distinct roles of well control equipment prevents disastrous operational failures. Annular and ram preventers serve as complementary forces within the stack. They are never direct substitutes for one another. Optimal specification depends entirely on accurate well pressure forecasting and rigorous supplier vetting. You must balance the versatility of elastomer seals against the raw holding power of opposed steel blocks. We strongly encourage you to consult with engineering specialists to review your specific BOP stack requirements. Request detailed technical specifications for U-type or custom ram configurations to ensure your rig remains compliant and safe.
A: Typically, the driller activates the annular BOP first. It provides an immediate, versatile seal around whatever pipe is currently in the hole. This rapid closure stops the initial influx and allows the crew time to assess the trapped pressure before engaging the more specific ram preventers.
A: Yes, many annulars are technically designed to seal an open hole. However, doing so repeatedly stretches the elastomer element to its absolute limit, severely degrading it. Blind rams serve as the dedicated, reliable tool for open-hole closures.
A: Inspections must follow API Standard 53 guidelines. Components require visual inspection between wells and formal pressure testing every 14 to 21 days depending on regional regulations. You must also conduct a rigorous post-event inspection immediately following any active well control situation.
