FKQ640-6 BOP Control Unit with Pneumatic Console

Main Technical Parameters

Understanding the precise capabilities of your well control equipment is paramount for maintaining rigorous safety barriers on the rig. The FKQ640-6 series represents a highly engineered solution designed specifically for demanding drilling environments. To assist procurement teams in matching operational requirements, the model nomenclature is straightforward: the system utilizes a capsule-style accumulator matrix, features a generous 640-liter total volume capacity, and efficiently manages up to 6 distinct control objects.

Constructed with heavy-wall SCH 160 supply piping and a manifold rated for 5000 PSI working pressure, the physical build of this unit feels incredibly solid and unyielding to the touch, reflecting its industrial-grade material integrity. Before any unit leaves the manufacturing facility, it undergoes exhaustive hydrostatic pressure testing and simulated fail-safe scenarios. This ensures that every component, from the 340-gallon oil reservoir to the precision-machined control valves, performs flawlessly under extreme stress, providing operators with absolute confidence during critical well-intervention procedures.

Reference to Standards

Compliance with international drilling standards is not merely a benchmark; it is the foundation of operational reliability and crew safety. This control unit is meticulously engineered to align with the stringent directives set forth by the American Petroleum Institute, ensuring rapid and predictable responses during unexpected well kicks.

• API Spec 16D Compliance: Dictates the exacting design and testing protocols for well control and diverter equipment systems, guaranteeing structural resilience.

• API Standard 53 Adherence: Governs the installation, maintenance, and testing of blowout prevention equipment, providing a comprehensive framework for field deployment.

• Material Traceability: Every unit is accompanied by full ASME certification for the accumulator bottles and comprehensive material specification submissions, ensuring complete audit readiness.

The strict adherence to these standards guarantees that the equipment can withstand the harsh, corrosive realities of deep-tier exploration and hazardous explosion-proof environments without compromising its primary safety functions.

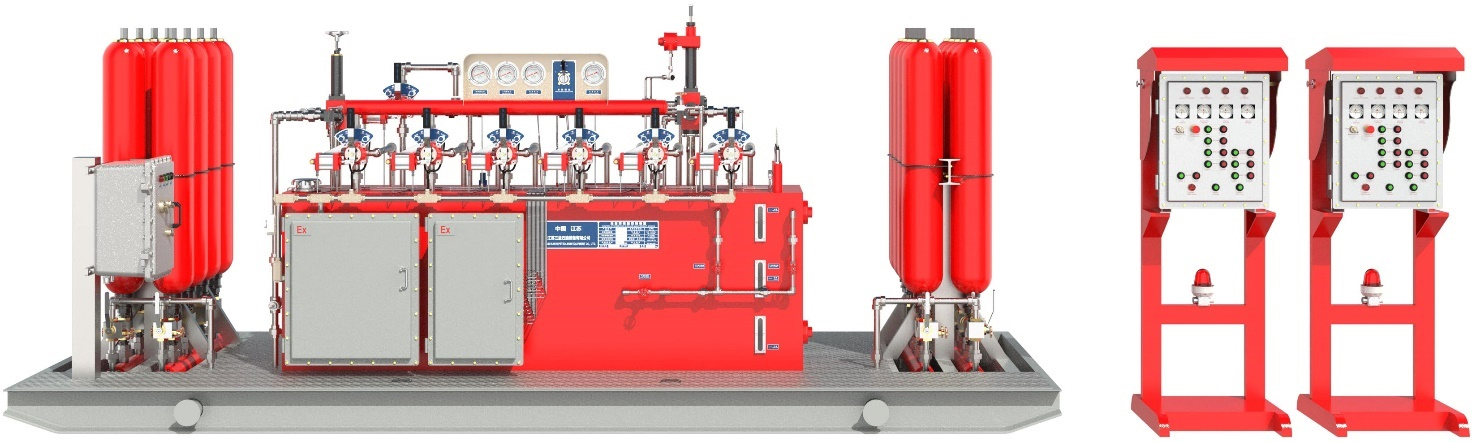

BOP Control Unit: FKQ640-6

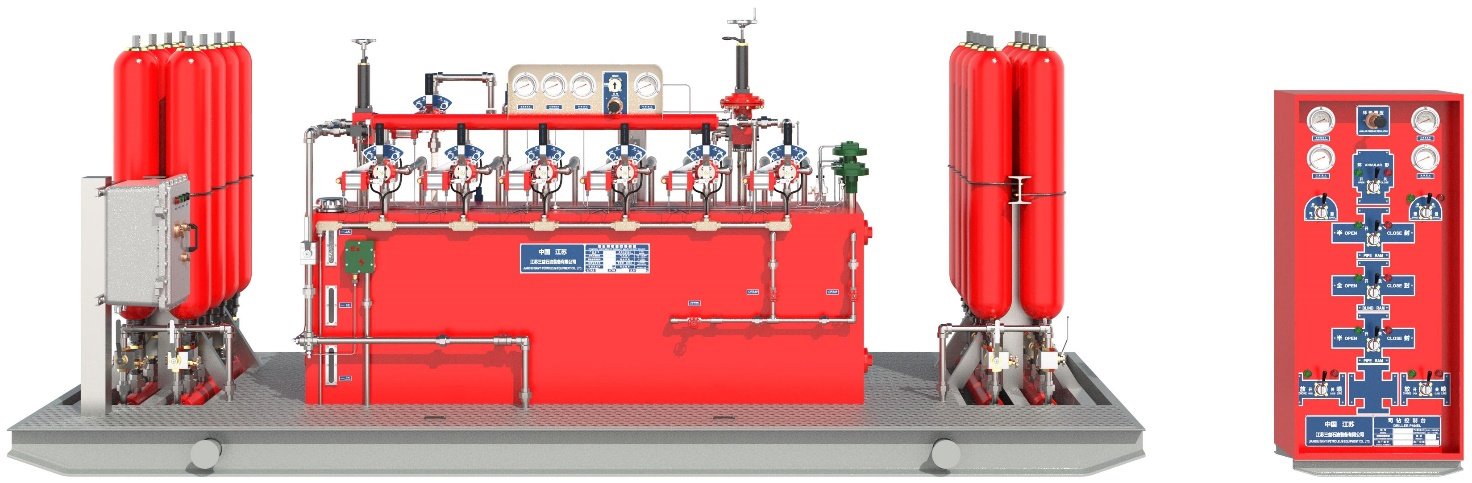

The FKQ640-6 configuration features a highly responsive pneumatic driller's console, offering operators tactile, immediate mechanical feedback during critical well-intervention procedures. The distinct metallic click of the control valves engaging provides physical assurance that the sequence has been activated. Its skid-mounted architecture is specifically designed to facilitate rapid deployment across both offshore platforms and land-based drilling sites. When an emergency BOP ram closure is initiated, the system delivers millisecond-level reaction times, propelled by the dual pneumatic pumps and the heavy-duty electric pump.

In hazardous zones, safety is reinforced by strict CNEX, ATEX, and IECEX explosion-proof certifications. Should pressure anomalies occur, the combined visual and aural alarms emit a piercing, unmistakable warning sound and bright flashing lights, immediately alerting the rig crew over the ambient noise of the drilling floor. The entire assembly is coated in a specialized industrial finish that resists saltwater corrosion and withstands the harsh realities of daily rig operations.

Main Technical Parameters

BOP Control Unit: FKDQ640-6

For operations requiring advanced automation and precise data management, the FKDQ640-6 variant replaces the traditional pneumatic interface with a sophisticated Programmable Logic Controller (PLC). This modern control mode allows for seamless integration into the rig's central management network, providing unparalleled oversight during complex drilling operations.

1. Configurable Options: Procurement managers can specify optional nitrogen backup systems to ensure continuous operation and pressure maintenance even during total rig power loss.

2. Health Monitoring: The PLC console supports real-time data acquisition, recording pressure trends and valve actuation history to predict maintenance needs before mechanical failure occurs.

3. Extreme Condition Readiness: Tailored for high-pressure well-intervention scenarios, the system maintains a reliable well control barrier while minimizing human error through automated, pre-programmed sequences.

The smooth, touch-sensitive interface of the PLC console contrasts sharply with the rugged, heavy-duty metallic construction of the main accumulator rack, providing a perfect blend of modern digital control and industrial brawn.

Main Technical Parameters

Geographic distribution of customers using BOP Control Unit

The proven reliability of our well control systems has established a strong operational footprint across major global oil and gas producing regions. From the sweltering, sand-swept deserts of the Middle East to the freezing, harsh offshore environments of Russia, these units consistently deliver uncompromising safety barriers. By engineering equipment that adapts to extreme temperature fluctuations and corrosive atmospheres, we ensure that drilling programs proceed without costly interruptions.

Beyond the initial procurement, we support international drilling contractors with a comprehensive suite of after-sales and value-added services. This includes flexible equipment leasing programs for temporary rig setups, systematic technical upgrades to keep pace with evolving API directives, and scheduled preventative maintenance. Furthermore, we offer complete API recertification services, ensuring that your capital investment maintains its compliance, efficiency, and structural integrity throughout its entire lifecycle. Our global logistics network ensures that critical spare parts—whether it be a replacement 11-gallon ASME-certified accumulator bottle or a specific pneumatic control valve—reach your site with minimal lead time.

Australia

Egypt

Hungary

Indonesia

Iran

India

Kazakhstan

Kuwait

Malaysia

Nigeria

Oman

Roumania

Russia

Thailand

Turkey

Turkmenistan

Ukraine

Vietnam
